一、技術參數：
| 參數 Specivfications | 單位Unit | 技術指標Technique data |
| 額定載荷 | Rated capacity | t | 0.1、0.2、0.3、0.5、1、5...30 |
| 輸出靈敏度 | Output sensitivity | mV/V | 1.2~2.0±10% |
| 非線性 | Non-linearity | %F.S | ≤±0.5 |
| 滯后 | Hystersis | %F.S | ≤±0.3 |
| 重復性 | Repeatability | %F.S | ≤±0.3 |
| 蠕變 | Creep | %F.S/30min | ±0.1 |
| 溫度靈敏度漂移 | Temperature sensitivity drift | %F.S/10°C | ±0.05 |
| 零點溫度漂移 | zero point temperature drift | %F.S/10°C | ±0.05 |
| 零點輸出 | zero output | %F.S | <±1 |
| 輸入阻抗 | Input resistance | Ω | 380±10 |
| 輸出阻抗 | Output resistance | Ω | 350±3 |
| 絕緣阻抗 | Insulation resistance | MΩ | ≥5000 |
| 工作溫度范圍 | Operating temperature | °C | -20~60 |
| 安全過載 | Safe overload | %F.S | 150 |
| 極限過載 | Ultimate overload | %F.S | 300 |
| 推薦工作電壓 | Recommended excitation voltage | VDc | 5~12 |
| 最大工作電壓 | Maximum excitation voltage | VDc | 15 |
| 材質 | material | 不銹鋼Stainless steel |
| 防護等級 | lP protection | IP65 |
| 備注 | Note | 可提供標準變送器模塊NS-A002/A003，輸出信號為4~20mA，O~5V,
0~10V，Profibus，Modbus，CANOpen RS485可選 |
| EXBZ-100T/TH17A | 量程(KG)
|
尺寸(MM) | A | c | d | E | H | o | M |
| 10~200 | 20 | 2.5 | 6 | 10 | 12 | 15.5 | M3 |
| 300~1000 | 26 | 5 | 6 | 11.5 | 15 | 18.5 | M4 |
| 2000 | 3o | 6 | 15 | 14 | 18 | 20 | M4 |
|
| EXBZ-100T/TH17B | 量程(T)
|
尺寸(MM) | A | c | d | E | H | D | M |
| 0.3~1 | 78 | 15 | 40 | 32 | 40 | 64 | M6×1.0 |
| 2~10 | 82 | 22 | 50 | 32 | 44 | 66 | M8×1.25 |
| 15~30 | 127 | 25 | 60 | 62 | 70 | go | M10×1.5 |
二、功能特點:

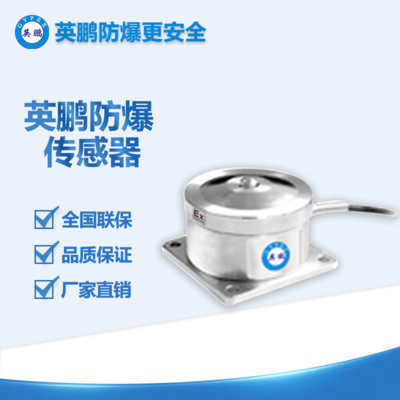

EXBZ-100T/TH17系列稱重傳感器結構小巧，高度低
可選擇膠封與焊接密封兩種形式，全不銹鋼材質，抗腐蝕；
適用于平臺稱、汽車衡、軌道衡及自動化測控領域。
